Specification
Value
Maximum Rating
110 kVA
Minimum Rating
50 kVA
Emissions/Fuel Strategy
EU Stage II & R96/EUIIIa
Voltage
110 to 480 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Prime
Specification
Value
Engine Model
Cat® C4.4
Bore
4.1 in
Stroke
5 in
Displacement
268.5 in³
Compression Ratio
16.2:1, 17.25:1, 18.2:1 or 18.3:1
Aspiration
Turbocharged
Fuel System
Direct Injection or Common Rail
Governor Type
Mechanical
Specification
Value
Length - Maximum
75.8 in
Width - Maximum
44.1 in
Height - Maximum
53.6 in
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meetsNFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements

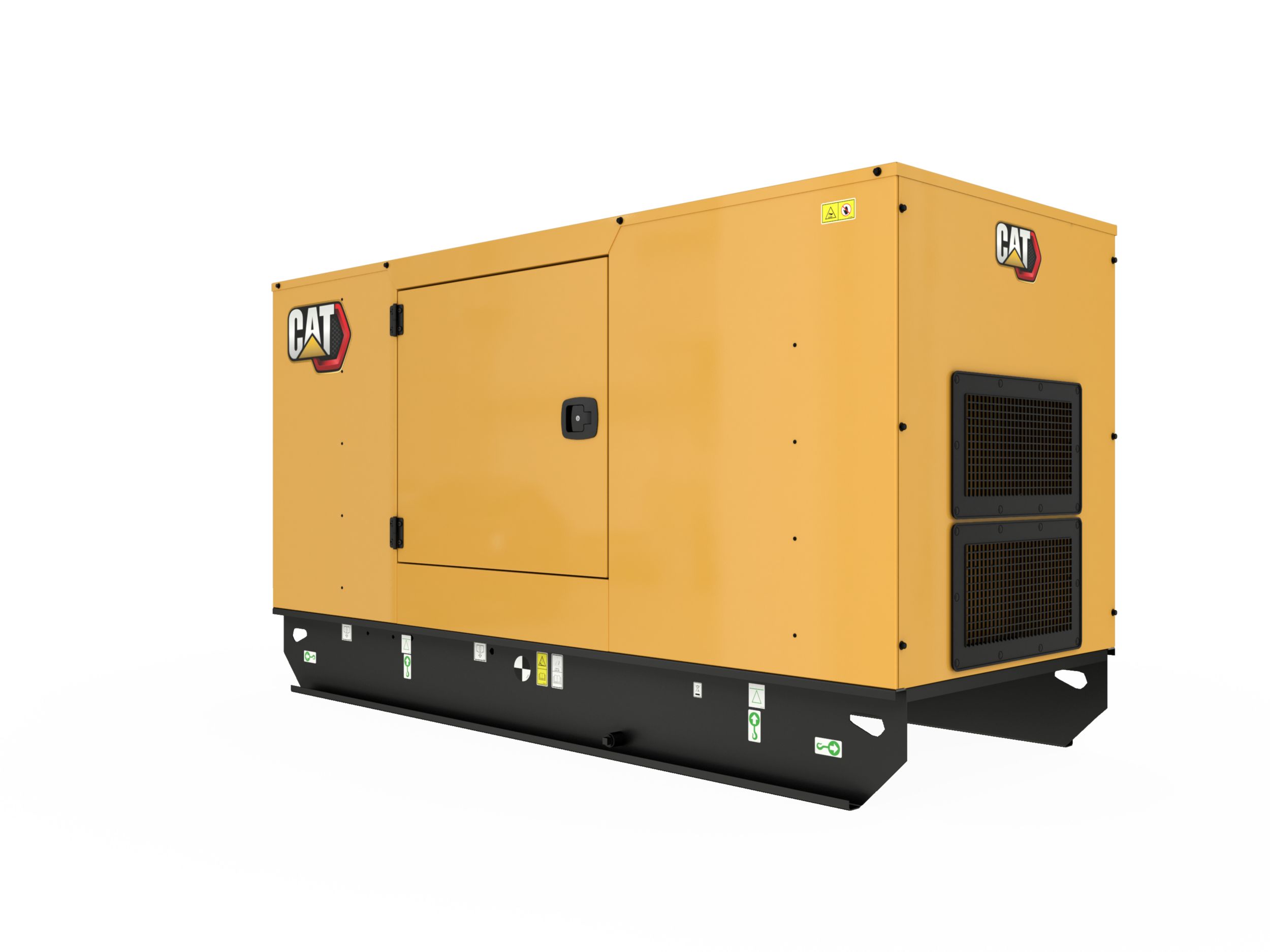

- Image may not be a representative of actual product
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
