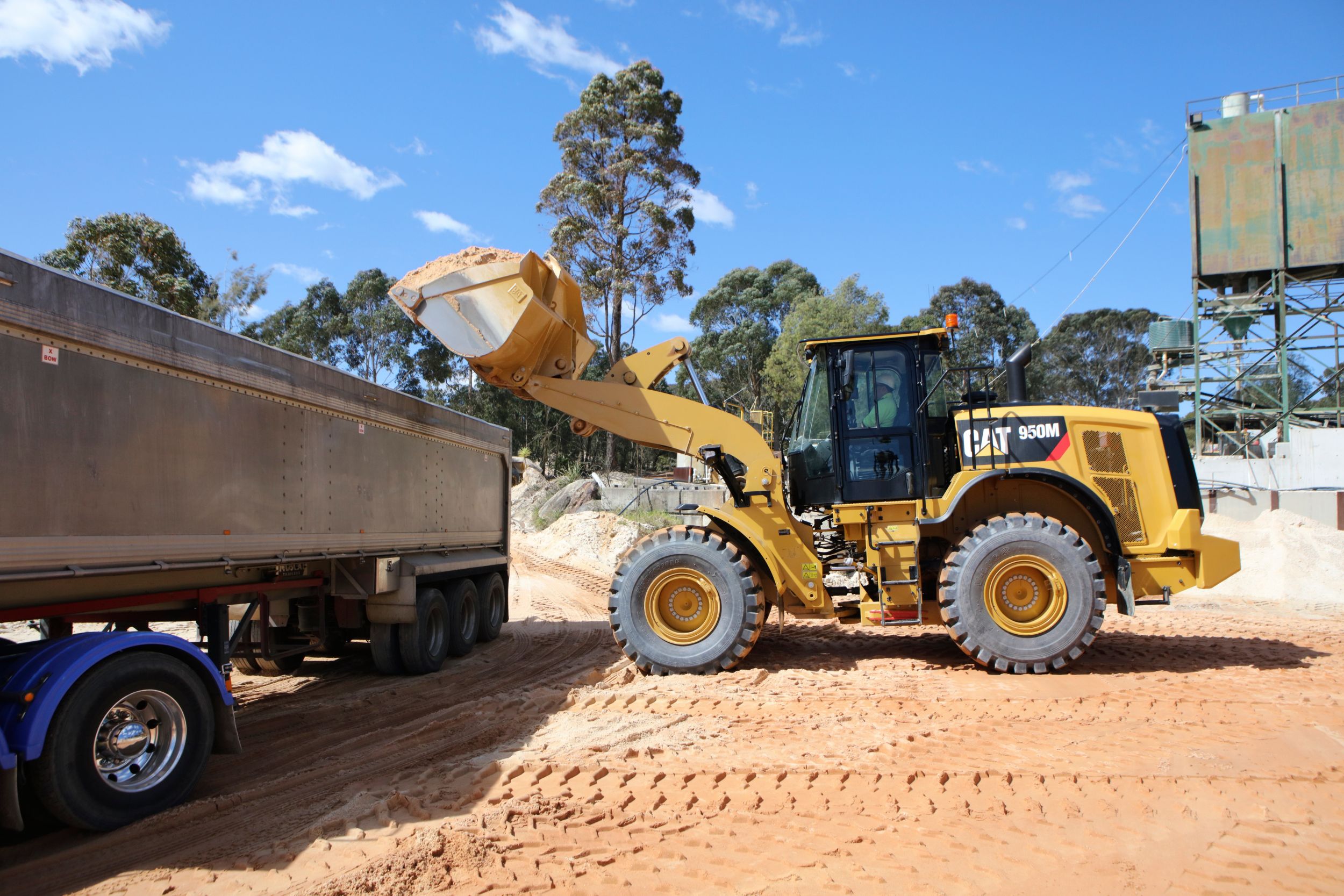

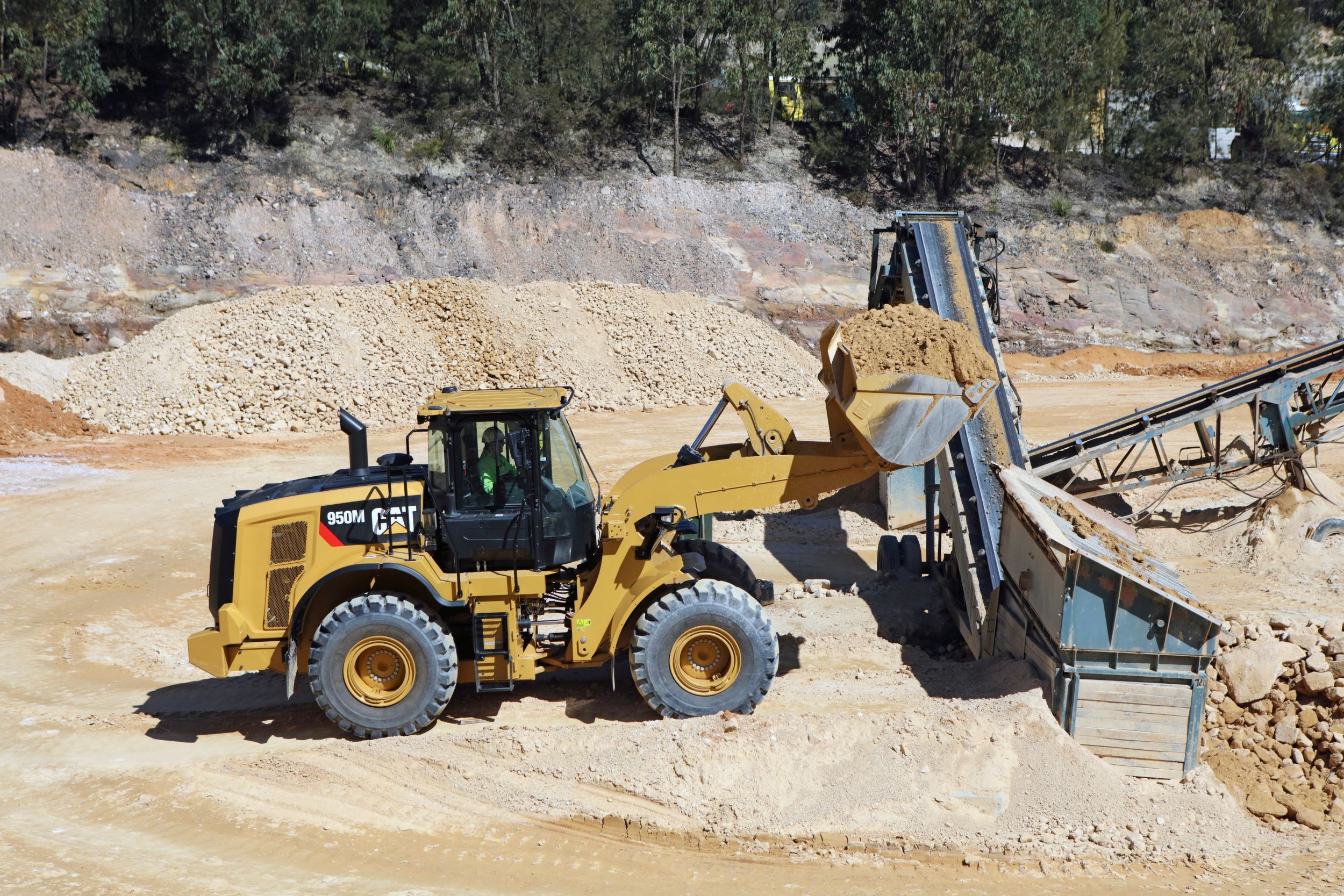

950M
The 950M Wheel Loader is equipped with built-in proven technologies to help meet your expectations for productivity and fuel efficiency. This wheel loader offers a standard lock up clutch torque converter, standard manual front locking differential axles, and improved standard ride control to significantly improve your fuel economy, performance and ergonomics. This machine deliversthe reliability, durability, and versatility you’ve come to expect from a Cat machine.
Net Power - ISO 9249
250 HP
Emissions
Tier 4/Stage V
Operating Weight
42357 lb
Specification
Value
Net Power - ISO 9249
250 HP
Emissions
Tier 4/Stage V
Maximum Power - 2,100 rpm - ISO 14396
249 HP
Peak Gross Torque - 1,300 rpm - SAE J1995
911 ft·lbf
Maximum Net Power - 2,100 rpm - ISO 9249 - Metric
232 HP
Maximum Power - 2,100 rpm - SAE J1995
250 HP
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Maximum Net Power - 2,100 rpm - ISO 9249
230 HP
Peak Gross Torque - 1,300 rpm - ISO 14396
908 ft·lbf
Displacement
428 in³
Maximum Net Power - 2,100 rpm - SAE J1349
230 HP
Engine Model
Cat C7.1
Maximum Power - 2,100 rpm - ISO 14396 - Metric
253 HP
Maximum Net Torque - 1,300 rpm
858 ft·lbf
Specification
Value
Operating Weight
42357 lb
Note
Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 3.1 m³ (4.1 yd³) general purpose bucket with BOCE.
Specification
Value
Bucket Capacities
2.5-9.2 m³ (3.3-12.0 yd³)
Specification
Value
Height - Top of ROPS
11.33 ft
Centerline of Rear Axle to Edge of Counterweight
6.33 ft
Height - Top of Hood
8.83 ft
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Centerline of Rear Axle to Hitch
5.5 ft
Overall Length - Without Bucket
22.67 ft
Hinge Pin Height at Maximum Lift
13.25 ft
Rack Back - Carry Height
49 degrees
Rack Back - Maximum Lift
59 degrees
Height - Top of Exhaust Pipe
11.17 ft
Maximum Width - Over Tires - Loaded
9.25 ft
Lift Arm Clearance at Maximum Lift
10.75 ft
Ground Clearance
1.17 ft
Hinge Pin Height at Carry Height
2.08 ft
Wheel Base
11 ft
Tread Width
7 ft
Rack Back at Ground
36 degrees
Specification
Value
Note (1)
For a machine configuration as defined under "Weight."
Static Tipping Load - Full 40° Turn - With Tire Deflection
24262 lb
Breakout Force
40690 lbf
Static Tipping Load - Full 40° Turn - No Tire Deflection
25926 lb
Note (2)
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Specification
Value
Implement Pump Type
Variable Axial Piston
Implement System - Maximum Pump Output at 2,150 rpm
76 gal/min
Implement System - Maximum Operating Pressure
4250 psi
Hydraulic Cycle Time - Total
8.9 s
Specification
Value
Overall Length (without bucket)
22.8 ft
Maximum Width over Tires (loaded)
9.3 ft
Tread Width
7 ft
Height - Top of ROPS
11.4 ft
Height - Top of Hood
8.1 ft
Height - Top of Exhaust Pipe
11.2 ft
Hinge Pin Height at Carry Height
2.1 ft
Hinge Pin Height at Maximum Lift
13.3 ft
Ground Clearance
1.2 ft
Centerline of Rear Axle to Edge of Counterweight
6.4 ft
Centerline of Rear Axle to Hitch
5.6 ft
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Wheel Base
11 ft
Specification
Value
Forward - 2
7.5 mile/h
Forward - 1
4.3 mile/h
Forward - 5
24.5 mile/h
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Reverse - 3
16 mile/h
Forward - 4
16 mile/h
Forward - 3
12 mile/h
Reverse - 2
7.5 mile/h
Reverse - 1
4.3 mile/h
Specification
Value
Fuel Tank
72.6 gal (US)
Differential - Final Drives - Front
11.4 gal (US)
Cooling System
15.6 gal (US)
Hydraulic Tank
33 gal (US)
Transmission
11.4 gal (US)
Differential - Final Drives - Rear
11.4 gal (US)
DEF Tank
4.2 gal (US)
Crankcase
5.8 gal (US)
Specification
Value
Height - Top of Hood
8.83 ft
Hinge Pin Height at Carry Height
2.58 ft
Height - Top of ROPS
11.33 ft
Lift Arm Clearance at Maximum Lift
11.92 ft
Centerline of Rear Axle to Hitch
5.5 ft
Hinge Pin Height at Maximum Lift
14.83 ft
Rack Back - Carry Height
49 degrees
Ground Clearance
1.17 ft
Centerline of Rear Axle to Edge of Counterweight
6.33 ft
Overall Length - Without Bucket
24.58 ft
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Maximum Width - Over Tires - Loaded
9.25 ft
Tread Width
7 ft
Rack Back at Ground
40 degrees
Rack Back - Maximum Lift
59 degrees
Wheel Base
11 ft
Height - Top of Exhaust Pipe
11.17 ft
Specification
Value
Note (1)
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**
69 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)
107 dB(A)
Note (2)
**For machines in European Union countries and in countries that adopt the EU Directives.
Note (3)
***European Union Directive 2000/14/EC as amended by 2005/88/EC.
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
70 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)
75 dB(A)*
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**
104 LWA***
Specification
Value
Emissions
Tier 4/Stage IV
Specification
Value
Bucket Range
2.5-9.2 m³ (3.3-12.0 yd³)
- Cat C7.1 engine offers increased power density with a combination of proven electronic fuel and air systems.
- Equipped with automatic Cat regeneration system, Cat clean emissions module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump (Tier 4 Final, Stage IV, and Stage V only).
- Features an electric fuel priming pump and a fuel/water separator.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
- Tough transmission and axles handle extreme applications.
- Automatic powershift (5F/3R) transmission features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional loop filtration improves hydraulic system strength and component life.
- Full hydraulic enclosed wet-disc with Integrated Braking System (IBS) and brake wear indicators add valued safety on the job.
- Increased engine power resulting in improved machine performance and response.
- With 5-speed transmission and lock-up clutch torque converter, power trains deliver smooth shifting, fast acceleration, and speed on grade for greater performance and fuel efficiency.
- Optimized Z-bar linkage provides high breakout force at ground level along with excellent parallelism for precise work tool control.
- Easy-to-load performance series buckets improve material retention and reduce dig times, significantly improving productivity and fuel efficiency.
- Differential locks are activated on-the-go, which improves traction, resulting in increased productivity while reducing tire scuffing for reduced operating costs.
- Automatic idle engine shutdown system significantly reduces idle time, overall operatinghours, and fuel consumption.
- Deep system integration results in lower fuel consumption.
- Significantly more fuel efficient than both the H and K Series loaders.
- Power dense engine burns less fuel by providing power and torque when needed.
- Significantly improved performance and fuel economy through engine speed and overall system heat load reduction.
- Standard productive economy mode delivers more fuel savings with minimal productivity impact.
- Developed to monitor, manage, and enhance your job site operations.
- Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
- Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the job site.
- Link wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business. Gain valuable insight into how your machine or fleet is performing allowing you to make timely, fact-based decisions that can boost job site efficiency and productivity.
- Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
*Not legal for trade.
- Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
- Optional rear object detection radar system warns you of an object in critical zone while going in reverse, enhancing job site safety.
- Extended service intervals including -
- Engine oil and engine oil filter change interval up to 1000 hours (Tier 4 Final, Stage IV, and Stage V only)
- Hydraulic filter change interval up to 1000
- Transmission oil change interval up to 2000 hours
- One-piece tilting hood makes cab access fast and easy.
- Electrical service centers enhance convenience and accessibility.
- Access to fuel fill and daily maintenance points means less servicing time is required.
- Optional integrated Cat autolube system provides full lube system monitoring and diagnostic test visibility.
- Remote flash support
- Longer tire life with on-the-go traction aids
- The next generation easily adjustable seat with updated styling and a revolutionary suspension system. It comes in three trim levels and can be equipped with a 4-point harness.
- Sound-suppression, seals, and damping cab mounts decrease noise and vibration for a quieter work environment.
- Low-effort conventional steering wheel standard.
- Optional seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
- Electrohydraulic (EH) controls, parking brake, and Single Axis Lever (SAL) lift and tilt function allow for better handling and control management.
- Smart ergonomic controls are easy to use, intuitive, and user-friendly.
- Touchscreen multi-function color display keeps operators focused.
- The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
- Enhanced inclined steps and convenient grab handles create a secure and accessible operating space.
- Extended windows enhance visibility while convex and spot mirrors extend the driver’s view on the sides and rear.
INDUSTRIAL & WASTE
- Engineered for work in Transfer Stations, Recycling Depots, Scrap Yards and Demolition Sites.
- Factory installed guarding improves uptime; guards protect axle seals, steering cylinders, crankcase, front frame, powertrain, tilt cylinders, lower cab and rear box. Package includes reinforced service centers, heavy duty cable steps, lift cylinder baffles, narrow front fenders, and steel rear fender deflectors.
- Factory installed options available are solid tires, rear machine guard, rubber mounted cab glass, engine precleaner, powered and filtered cab precleaner and variable pitch cooling fan.
- Cat Waste Buckets available separately are Load & Carry, Tamp & Clamp, Dozing, and Grapple can be fitted with steel or rubber cutting edge.
- Designed for efficiency and productivity log and chip handling in paper, pellet and saw mills.
- 950M Forest Machine includes logger counterweight to maintain stability carrying heavy loads, larger lift and tilt cylinders increase machine capacity 9% over base model.
- Factory options available are Fusion or VCE quick coupler, 3rd or 4th function hydraulics to operate top or high dump bucket, front windshield guard, variable pitch fan, high debris cooler cores, engine precleaner, axle oil coolers and premium LED lighting package.
- Work Tools available separately are Sorting Grapple, Millyard, Logging, Pole and Log & Lumber Forks and Light Material High Dump and Chip Buckets.
- Designed for corrosive environments such as fertilizer plants, chemical industries, agriculture, salt water ports and others.
- Factory protection of all machine components that can be affected by corrosive materials.
- Treatment includes E-Coat cooler cores, additional coating on main hydraulic valve, heat treated shrink sealant on hydraulic hoses, fittings and electrical wiring, all hinges greased, Zerust® vapor enclosure for electronic components, extra heavy duty alternator, turbine engine precleaner and varnish protection on engine compartment, internal chassis and all non-painted metallic parts.
