777 (07)

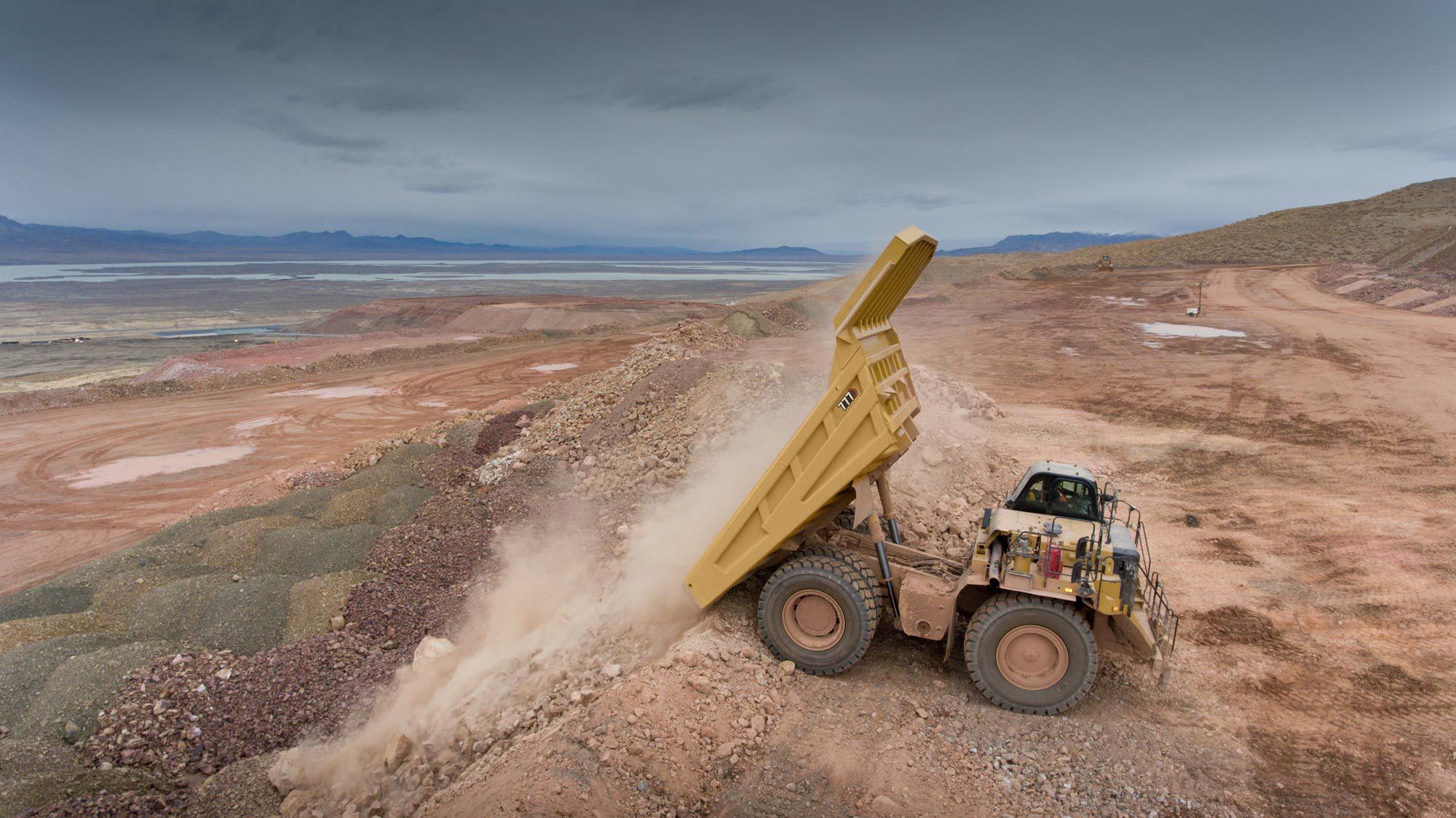

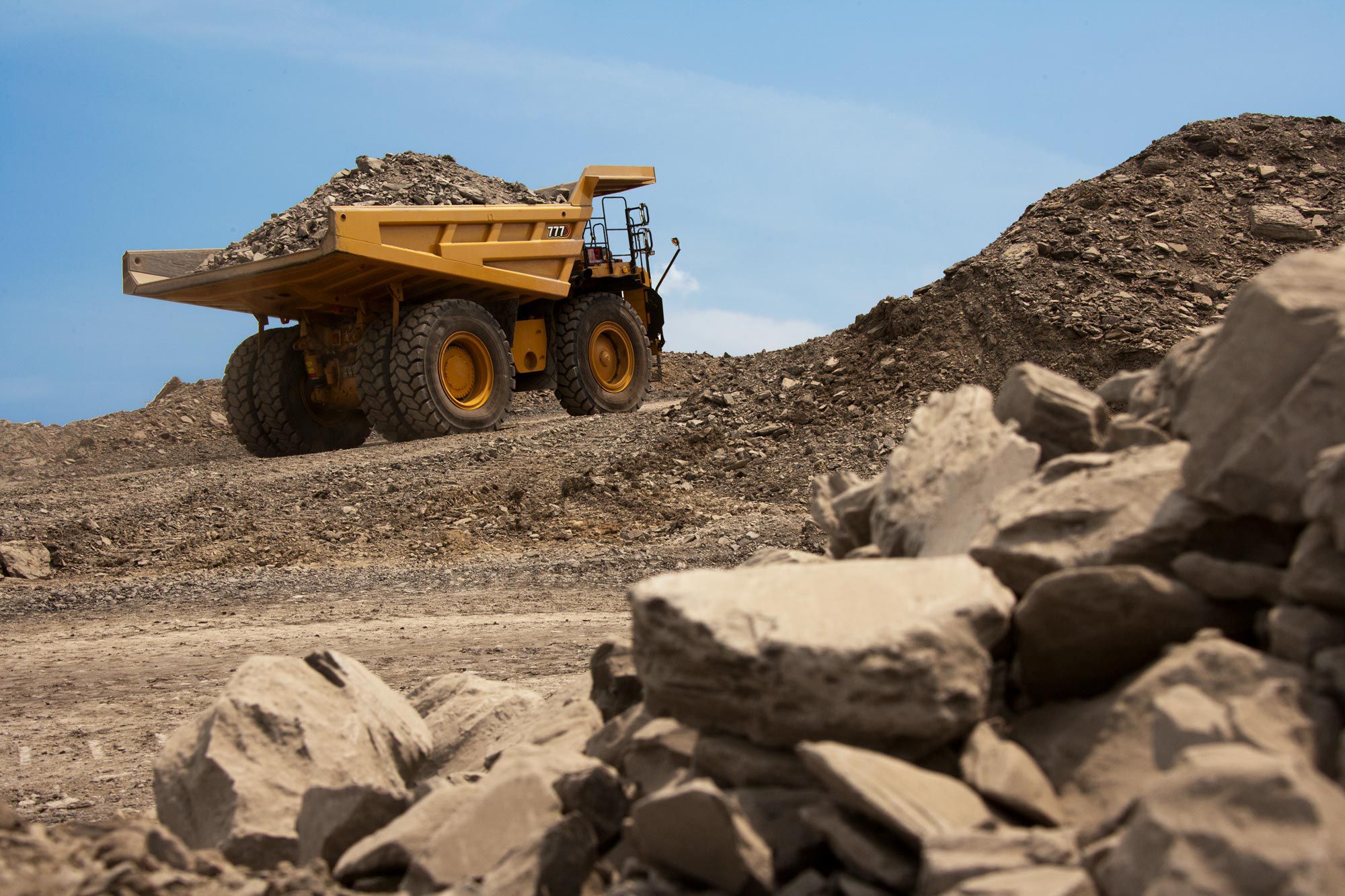

The Cat® 777 is engineered to be the most efficient 100-ton mechanical truck in the industry. With your input, we have designed and manufactured a truck that is reliable, durable, and economical, offering comfort, confidence, and control to its operators. With
an improved access system designed to minimize slips and falls, this truck provides firm footing and stability in less than perfect conditions.
an improved access system designed to minimize slips and falls, this truck provides firm footing and stability in less than perfect conditions.
Engine Model
Cat® C32B
Gross Power - SAE J1995
1025 HP
Net Power - SAE J1349
916 HP
Specification
Value
Engine Model
Cat® C32B
Gross Power - SAE J1995
1025 HP
Net Power - SAE J1349
916 HP
Bore
5.7 in
Stroke
6.4 in
Displacement
1959 in³
Peak Torque - Speed
1200 r/min
Engine Speed
1800 r/min
Cylinders
12
Engine Power - ISO 14396
1008 HP
Net Torque Rise
Tier 4: 39%. Tier 2: 37%
Note (1)
Power rating applies at 1,800 rpm when tested under the specified condition for the specified standard.
Note (2)
Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Note (3)
Available as Tier 4 Final/Stage V equivalent, Tier 3/Stage IIIA equivalent, or Tier 2/Stage II equivalent emission standards.
Note (4)
Meets China Nonroad Stage III emission standards equivalent to U.S. EPA Tier 3 or U.S. EPA Tier 2.
Specification
Value
Target Gross Machine Weight
363000 lb
Specification
Value
Target Payload (100%)
101.1 ton (US)
Top Speed - Loaded
40.9 mile/h
Maximum Working Payload (110%)
111.2 ton (US)
Maximum Allowable Payload (120%)*
121.3 ton (US)
Body Capacity - SAE 2:1
83.1 yd³
Note (1)
Capacity with flat floor X Body with liner.
Note (2)
* Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross vehicle weight limitations.
Specification
Value
Forward - 1
6.6 mile/h
Forward - 2
9.1 mile/h
Forward - 3
11.9 mile/h
Forward - 4
16.6 mile/h
Forward - 5
22.5 mile/h
Forward - 6
30.2 mile/h
Forward - 7
40.9 mile/h
Reverse
7.5 mile/h
Note
Maximum travel speeds with standard 27.00R49 (E4) tires.
Specification
Value
Differential Ratio
2.736:1
Planetary Ratio
7.0:1
Total Reduction Ratio
19.1576:1
Specification
Value
Brake Standards
ISO 3450-2011
Brake Surface Area - Front
6331 in²
Brake Surface Area - Rear
15828 in²
Specification
Value
Pump Flow - High Idle
120.9 gal/min
Relief Valve Setting - Raise
2750 psi
Relief Valve Setting - Lower
500 psi
Body Raise Time - High Idle
15 s
Body Lower Time - Float
13 s
Body Lower Time - High Idle
13 s
Specification
Value
Struck
54.8 yd³
Heaped (SAE 2:1)*
78.6 yd³
Note (1)
Contact your local Cat dealer for body recommendation.
Note (2)
*ISO 6483:1980
Specification
Value
Front Axle - Empty
42 %
Front Axle - Loaded
33 %
Rear Axle - Empty
58 %
Rear Axle - Loaded
67 %
Specification
Value
Rear axle - Oscillation
5.4 °
Empty Loaded Cylinder Stroke Front
2.9 in
Empty Loaded Cylinder Stroke Rear
2.5 in
Specification
Value
Fuel Tank (1)
300 gal (US)
Fuel Tank (2)
350 gal (US)
Cooling System
61 gal (US)
Crankcase
28.7 gal (US)
Differentials
59.9 gal (US)
Final Drive - Each
20 gal (US)
Steering System - Including Tank
14.1 gal (US)
Brake Hoist System
117 gal (US)
Torque Converter - Transmission System
36.5 gal (US)
Specification
Value
Standard Tire
27.00R49 (E4)
Note (1)
Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)
Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection.
Specification
Value
ROPS Standards
Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
FOPS Standards
Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
Specification
Value
Sound Standards (1)
The operator Equivalent Sound Pressure Level (Leq) is 73 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.
Sound Standards (2)
The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, mid‑gear moving operation is 83 dB(A).
Sound Standards (3)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Specification
Value
Turning Diameter - Front
83 ft
Steering Standards
ISO 5010:2007
Steer Angle
30.5 °
Turning Circle - Clearance Diameter
93 ft
Specification
Value
Struck
56.3 yd³
Heaped (SAE 2:1)*
83.8 yd³
Note (1)
Contact your local Cat dealer for body recommendation.
Note (2)
*ISO 6483:1980
Specification
Value
SAE 2:1 - For use with material densities of 1160 kg/m3 (1,950 lb/yd3)
116.8 yd³
SAE 2:1 - For use with material densities of 1040-1160 kg/m3 (1,750-1,950 lb/yd3)
139 yd³
SAE 2:1 - For use with material densities of 950-1040 kg/m3 (1,600-1,750 lb/yd3)
144 yd³
SAE 2:1 - For use with material densities less than 950 kg/m3 (1,600 lb/yd3)
164.6 yd³
